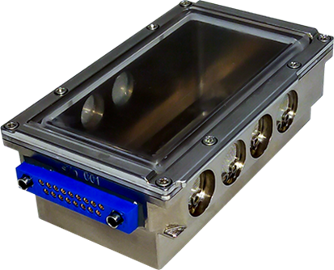

The KIC-SLA-E3W is a further expanded version of KIC-SL-E, featuring semipermeable membrane for gas exchange and a transparent window that allows the direct observation of the experiment inside it. The KIC-SLA-E3W provides an increased internal volume for the experiment accommodation maintaining the same mechanical interfaces and locking mechanism for insertion in small racks. In case the membranes are not required,containers without them can be provided.
The KIC-SL is made of certified material with excellent mechanical and chemical structural properties. It composed by a main body (where the electrical interface connector is placed) and a cover. The KIC-SL external and internal surfaces undergone appropriate treatment to guarantee electrical isolation and/or corrosion resistance. The KIC-SL provides one Level of Containment (LoC). The KIC-SL is provided with a standardized electrical connector that allows its use on existing facilities or equipment available on ISS. Alternative connectors can be implemented on request. In its standard configuration the KIC-SL is fully qualified for manned missions and for many of the carriers available today including Chinese Shenzhou.
| Levels of Containment | (LoC) 1 |
| External Envelope | 98x62x23 mm (LxWxH) |
| Internal Dimensions | 82x42x21 mm (LxWxH) – for EU accommodation |
| Internal volume | 72 ml (whole available volume is ≈84 ml) |
| Container Mass | 66 grams (standard electrical connector included) |
| Electrical Connector | 17 contacts |
| Operative Temperature | -5 °C to +45 °C (qualified) |
| Storage Temperature | -80 °C (qualified) |
| Crew Handling | YES |
| In-Flight Opening | NO |
| Operations |
Automatic experiment execution
|
Additional Detailed information available on request.
| QUALIFIED FOR | Progress – Soyuz – Dragon – Shenzhou |
| QUALIFIED FOR | Manned Missions (ISS - Soyuz) |
The KIC-DL-E is the “expanded” version of KIC-DL with larger dimensions. It provides increased internal volume for the experiment accommodation maintaining the same mechanical interfaces and locking mechanism for insertions in small racks. The KIC-DL-E is made of certified material with excellent mechanical and chemical structural properties. It composed by a main body (where the electrical interface connector is placed) and a cover. The KIC-DL-E external and internal surfaces undergone appropriate treatment to guarantee electrical isolation and/or corrosion resistance. The KIC-DL-E provides two Level of Containment (LoC). The KIC-DL-E is provided with a standardized electrical connector that allows its use on existing facilities or equipment available on ISS. Alternative connectors can be implemented on request. In its standard configuration the KIC-DL-E is fully qualified for manned missions and for many of the carriers available today.
| Levels of Containment | (LoC) 1 |
| External Envelope | 98x62x33 mm (LxWxH) |
| Internal Dimensions | 78x40x31 mm (LxWxH) – for EU accommodation |
| Internal volume | 97 ml (whole available volume is ≈114 ml) |
| Container Mass | 91 grams (standard electrical connector included) |
| Electrical Connector | 17 contacts |
| Operative Temperature | -5 °C to +45 °C (qualified) |
| Crew Handling | YES |
| In-Flight Opening | NO |
| Operations | Automatic experiment execution |
Additional Detailed information available on request.
| QUALIFIED FOR | Progress – Soyuz – Dragon |
| QUALIFIED FOR | Manned Missions (ISS - Soyuz) |
The KIC-DL is made of certified material with excellent mechanical and chemical structural properties. It composed by a main body (where the electrical interface connector is placed) and a cover. The KIC-DL external and internal surfaces undergone appropriate treatment to guarantee electrical isolation and/or corrosion resistance. The KIC-DL provides two Level of Containment (LoC). The KIC-DL is provided with a standardized electrical connector that allows its use on existing facilities or equipment available on ISS. Alternative connectors can be implemented on request. In its standard configuration the KIC-DL is fully qualified for manned missions and for many of the carriers available today.
| Levels of Containment | (LoC) 2 |
| External Envelope | 98x62x23 mm (LxWxH) |
| Internal Dimensions | 78x40x21 mm (LxWxH) – for EU accommodation |
| Internal volume | 66 ml (whole available volume is ≈80 ml) |
| Container Mass | 80 grams (standard electrical connector included) |
| Electrical Connector | 17 contacts |
| Operative Temperature | -5 °C to +45 °C (qualified) |
| Crew Handling | YES |
| In-Flight Opening | NO |
| Operations | Automatic experiment execution |
Additional Detailed information available on request.
| QUALIFIED FOR | Progress – Soyuz – Dragon |
| QIALIFIED FOR | Manned Missions (ISS - Soyuz) |
The KIC-SLC is the “spider” version of KIC-SL with no electrical interface connector. It provides the same external mechanical interfaces and locking mechanism for insertions in small racks. The KIC-SLC is composed by an empty main body and a lateral cover that can be opened in flight by the crew (if required by the experiment protocol). The KIC-SLC is made of certified material with excellent mechanical and chemical structural properties. External and internal surfaces undergone appropriate treatment to guarantee corrosion resistance. The KIC-SLC (when cover is closed) provides one Level of Containment (LoC). In its standard configuration the KIC-SLC is fully qualified for manned missions and for many of the carriers available today.
| Levels of Containment | (LoC) 1 |
| External Envelope | 92x62x20 mm (LxWxH) |
| Internal Dimensions | ≈ 80x40x20 mm (LxWxH) – for EU accommodation |
| Internal volume | ≈ 64 ml |
| Container Mass | 64 grams |
| Electrical Connector | NO |
| Operative Temperature | -5 °C to +45 °C (qualified) |
| Crew Handling | YES |
| In-Flight Opening | YES |
| Operations | Manual experiment execution |
Additional Detailed information available on request.
| QUALIFIED FOR |
Progress – Soyuz – Dragon |
| QUALIFIED FOR | Manned Missions (ISS) |
The KIC-SL-E is the “expanded” version of KIC-SL with larger dimensions. It provides increased internal volume for the experiment accommodation maintaining the same mechanical interfaces and locking mechanism for insertions in small racks. The KIC-SL-E is made of certified material with excellent mechanical and chemical structural properties. It composed by a main body (where the electrical interface connector is placed) and a cover. The KIC-SL-E external and internal surfaces undergone appropriate treatment to guarantee electrical isolation and/or corrosion resistance. The KIC-SL-E provides one Level of Containment (LoC). The KIC-SL-E is provided with a standardized electrical connector that allows its use on existing facilities or equipment available on ISS. Alternative connectors can be implemented on request. In its standard configuration the KIC-SL-E is fully qualified for manned missions and for many of the carriers available today including Chinese Shenzhou.
| Levels of Containment | (LoC) 1 |
| External Envelope | 98x62x33 mm (LxWxH) |
| Internal Dimensions | 82x42x31 mm (LxWxH) – for EU accommodation |
| Internal volume | 107 ml (whole available volume is ≈121 ml) |
| Container Mass | 72 grams (standard electrical connector included) |
| Electrical Connector | 17 contacts |
| Operative Temperature | -5 °C to +45 °C (qualified) |
| Crew Handling | YES |
| In-Flight Opening | NO |
| Operations | Automatic experiment execution |
Additional Detailed information available on request.
| QUALIFIED FOR | Progress – Soyuz – Dragon – Shenzhou |
| QIALIFIED FOR | Manned Missions (ISS - Soyuz) |
The KIC-DLM is the “magnum” version of KIC class of containers with electrical interface connector. It is provided of a proprietary mechanical interface and locking mechanism for insertions on a dedicated platform. The unit is qualified for crew operations on ISS that can insert and remove each KIC-DLM from the platform. The KIC-DLM is composed by a main body (where the electrical interface connector is located) and the top cover (fixed by bolts to main body). The KIC-DLM is made of certified material with excellent mechanical and chemical structural properties. Its external and internal surfaces undergone appropriate treatment to guarantee electrical isolation and/or corrosion resistance. The KIC-DLM provides two Level of Containment (LoC). The KIC-DLM is provided with a standardized electrical connector that allows its use on existing facilities or equipment available on ISS. Alternative connectors can be implemented on request. In its standard configuration the KIC-DLM is fully qualified for manned missions and for many of the carriers available today.
| Levels of Containment | (LoC) 2 |
| External Envelope | 127x112x116 mm (LxWxH) |
| Internal Dimensions | ≈ 102x101x97 mm (LxWxH) – for EU(s) accommodation |
| Internal volume | ≈ 1 liter (whole available volume is ≈ 0.95 liters) |
| Container Mass | 512 grams |
| Electrical Connector | 15 contacts |
| Operative Temperature | -5 °C to +45 °C (qualified) |
| Storage Temperature | -80 °C (qualified) |
| Crew Handling | YES |
| In-Flight Opening | NO |
| Operations | Automatic experiment execution |
Additional Detailed information available on request.
| QUALIFIED FOR |
Progress – Soyuz – Dragon – ATV - HTV |
| QUALIFIED FOR | Manned Missions (ISS) |
